Height Restrictor

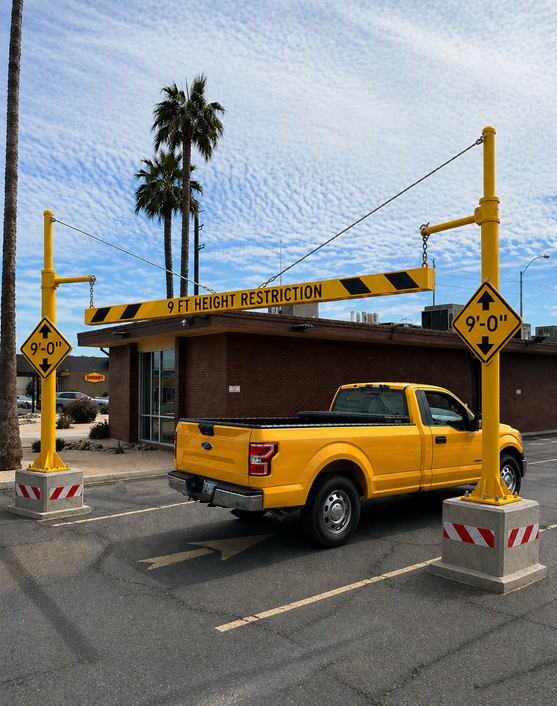

Heald’s fixed or swinging height restrictor barriers are designed to give a highly visible warning in areas where vehicle height is restricted such as underground car parks.

Our fixed model is ideal if a permanent height restriction is in place and our swinging height restrictor is intended for sites where high-sided vehicles, such as refuse lorries or delivery vans, require occasional access.

Both models are manufactured from heavy duty steel and aluminium with a galvanised, primed and painted finish.

With a standard height of 2000 mm, they can be supplied in a range of widths and heights to suit virtually any application. Both models can be installed directly into concrete or bolted to an existing concrete base.

Call Us at (480) 898-1272


Configurations & Technical Specification

Upright RHS:
Fixed: 100 mm x 100 mm x 4 mm
Swinging: 120 mm x 120 mm x 4 mm

Cross beams:
Fixed: 150 mm x 100 mm x 3 RHS
Swinging: 100 mm x 50 mm x 3 Aluminium box section

Pivot base plate:
Fixed: 300 mm x 300 mm x 10 mm
Swinging: 400 mm x 400 mm x 10 mm

Catch post/Retaining Post base: Swinging: 300 mm x 300 mm x 10 mm

Finish: Primed and painted with maximum height stickers

Optional finish: Hot dip galvanised


Manufacturer info

Website: https://www.heald.uk.com Address: Northfield, Atwick Road, Hornsea, United Kingdom, HU18 1EL Phone No.: +44 (0)1964 535858
